LPF Cartridge Filter

LPF cartridge filters, available with round or modular housing, are modern and flexible de-dusting equipment. They are used for dry applications in various processes throughout many industries. Especially with fine and dry dust LPF cartridge filters demonstrate a high filter-efficiency.

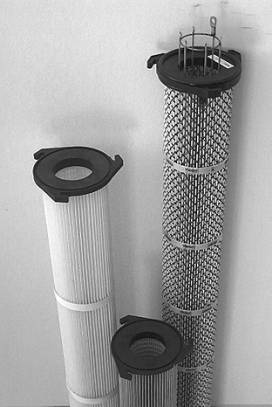

Cartridge filters with high quality fibers provide:

  • large filter surface in a small space
  • very high filtration efficiency
  • low pressure-loss

Because of the compact shape filters can be conveniently located inside factory-buildings. Negligible residue in the exhausted air enables direct recycling into the workplace.

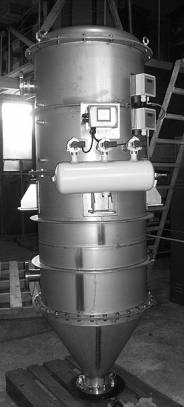

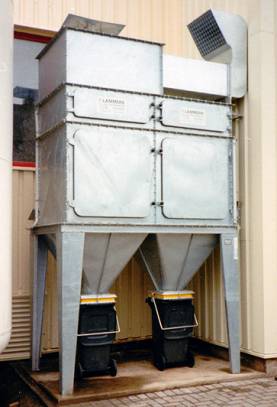

The housing can be supplied in round or modular design. With the modular design individual modules can be combined so that it is possible to achieve a filter surface of up to 700 square meters. Round housings range from 560mm to 2600mm in diameter. Depending on the diameter and bag length, a filter surface of up to 380 square meters is possible.
